Gross vehicle mass | 23,830 (Kg) |
Gross combination mass | 48,000 (Kg) |
Max towed weight designed / authorized | 40,000 / 38,850 (Kg) |
Max. Power | 380 (279) / 1,800 Ps(Kw)/rpm |
Max. Torque | 1,765/1,200~1,500 Nm/rpm |
Emission standard | Euro 5 |
Manufacturer name | QINGLING MOTORS CO., LTD |
Manufacturer address | No.1 Xiexing Road, Zhong Liang Shan, Jiu Long Po District 400052, ChongQing (China) |
Origin | China |
Suggested retail price | 1,698,840,000 VND |
OVERVIEW

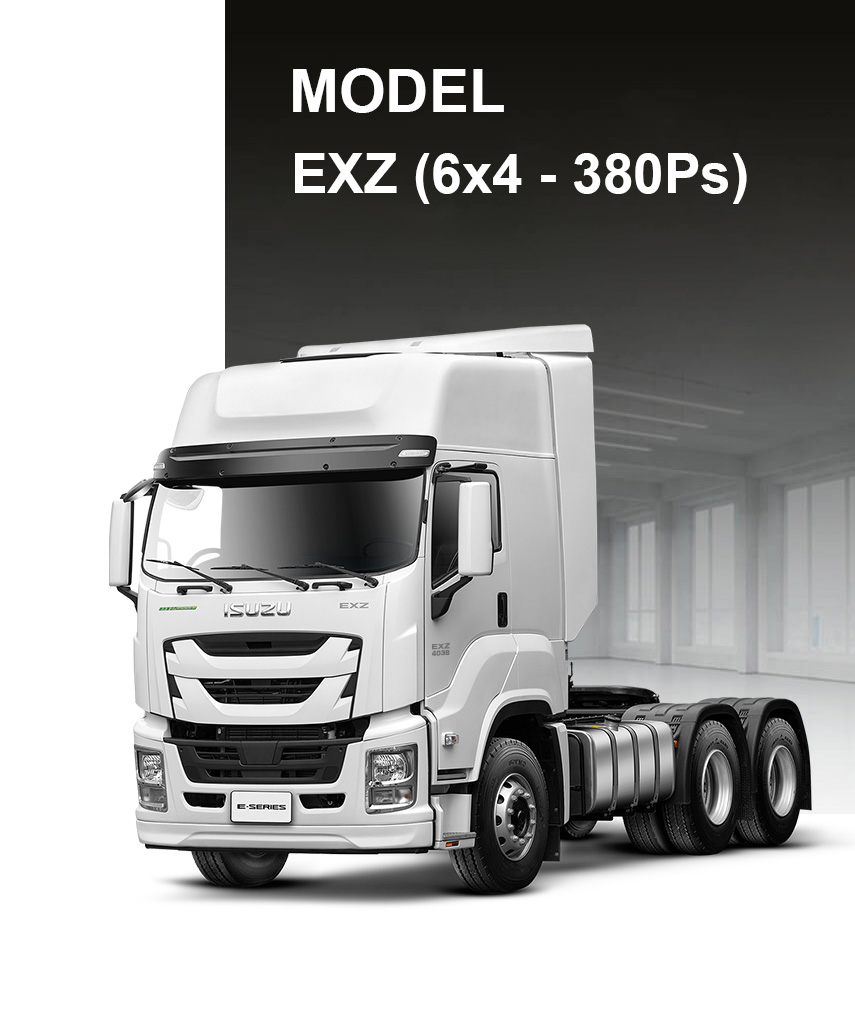

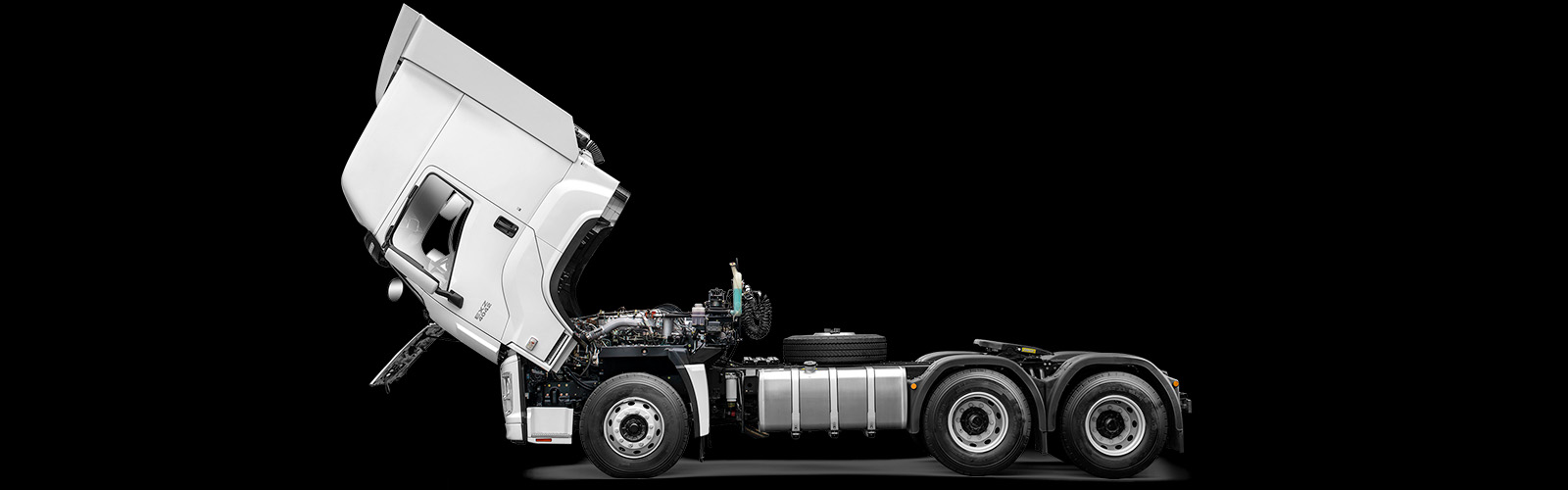

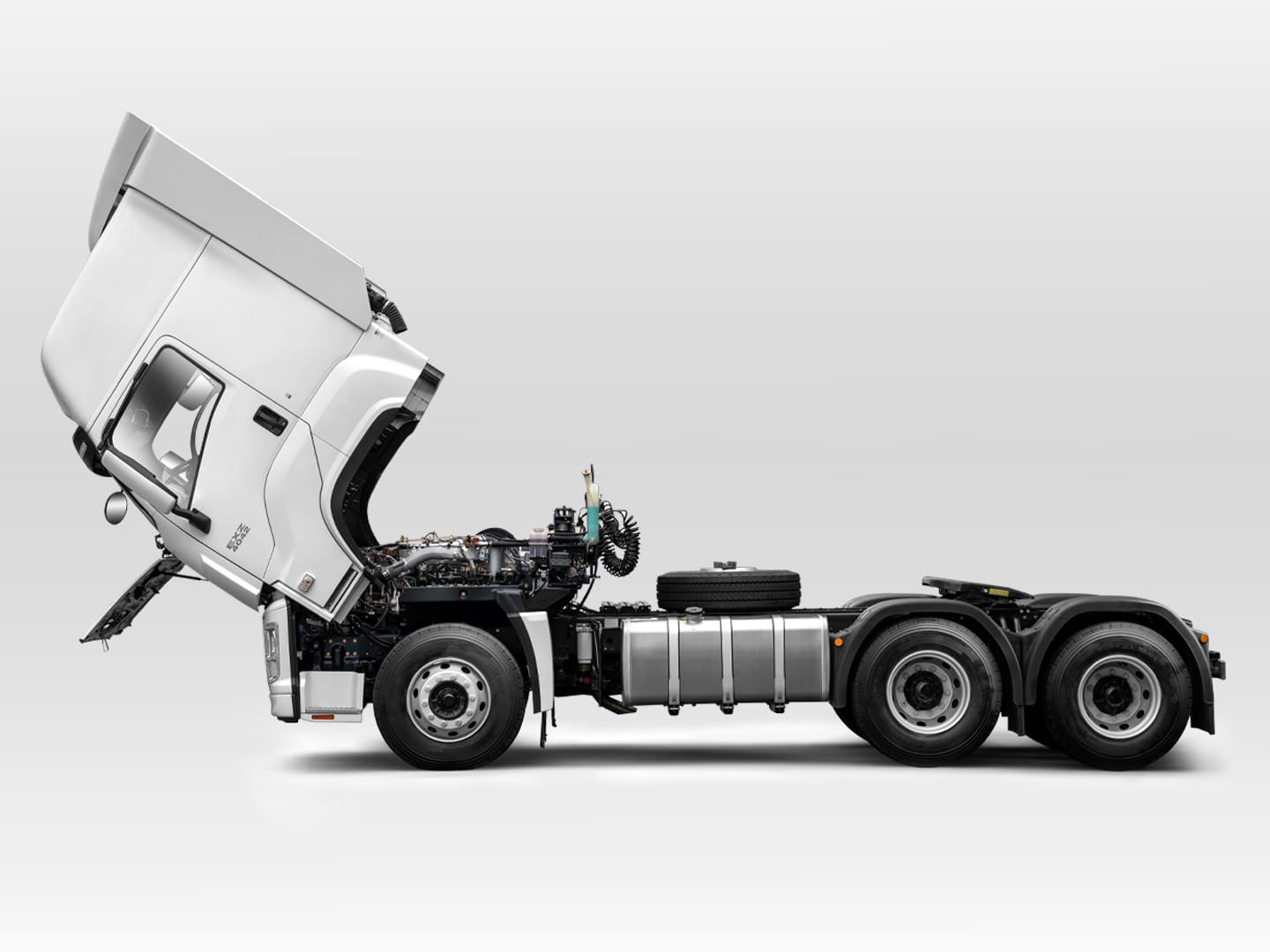

model TRACTOR HEAD ISUZU - EXZ - 6X4- 380PS

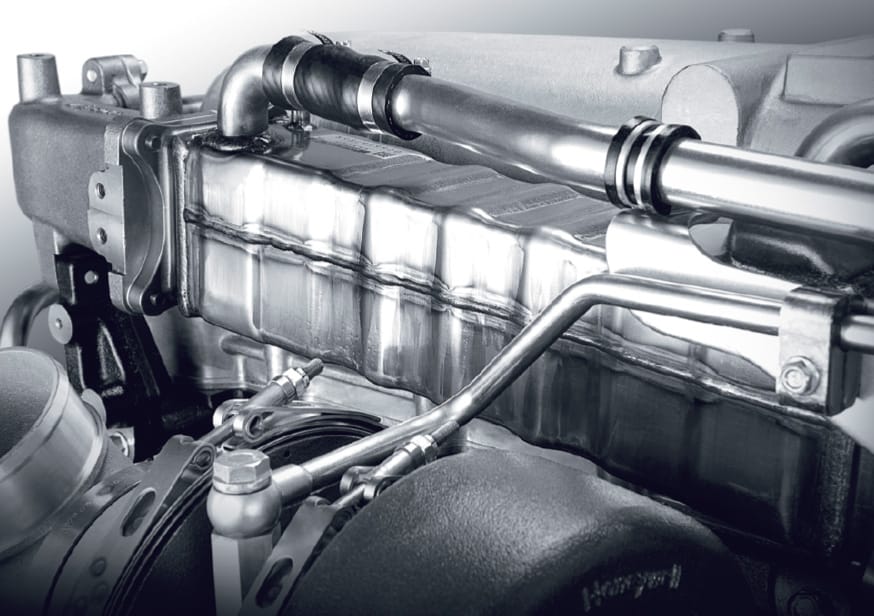

ENGINE
![](https://isuzudaklak.com.vn/wp-content/uploads/2024/06/1-1-1-1-1.jpg)

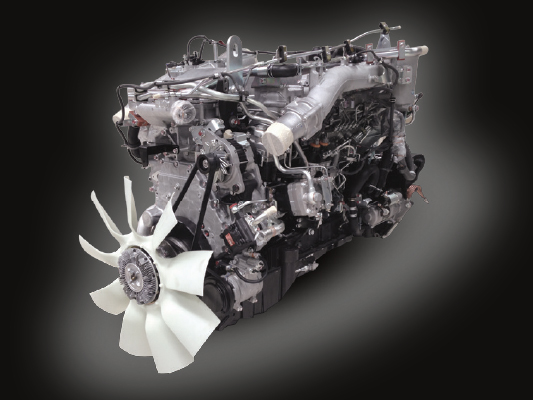

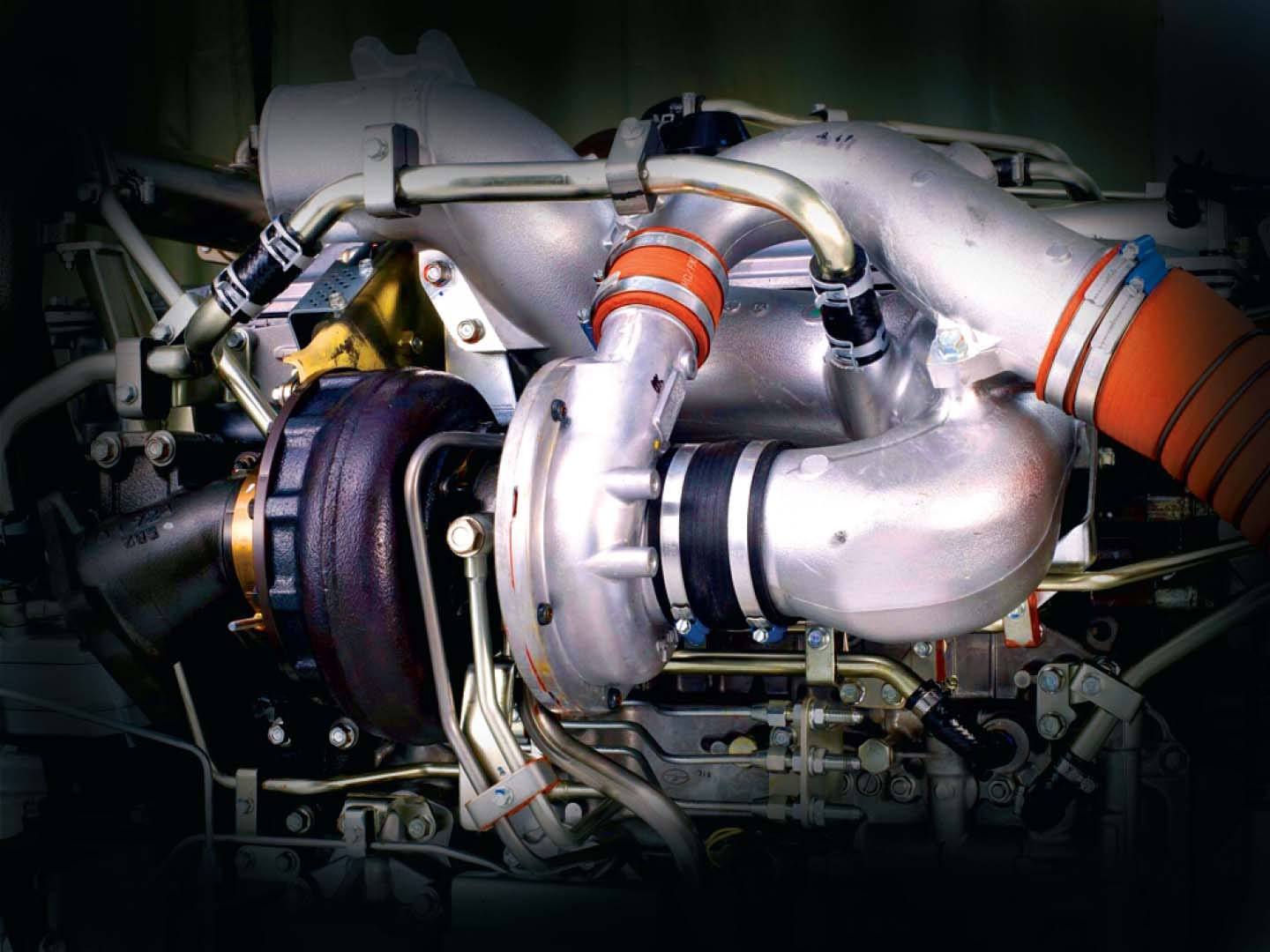

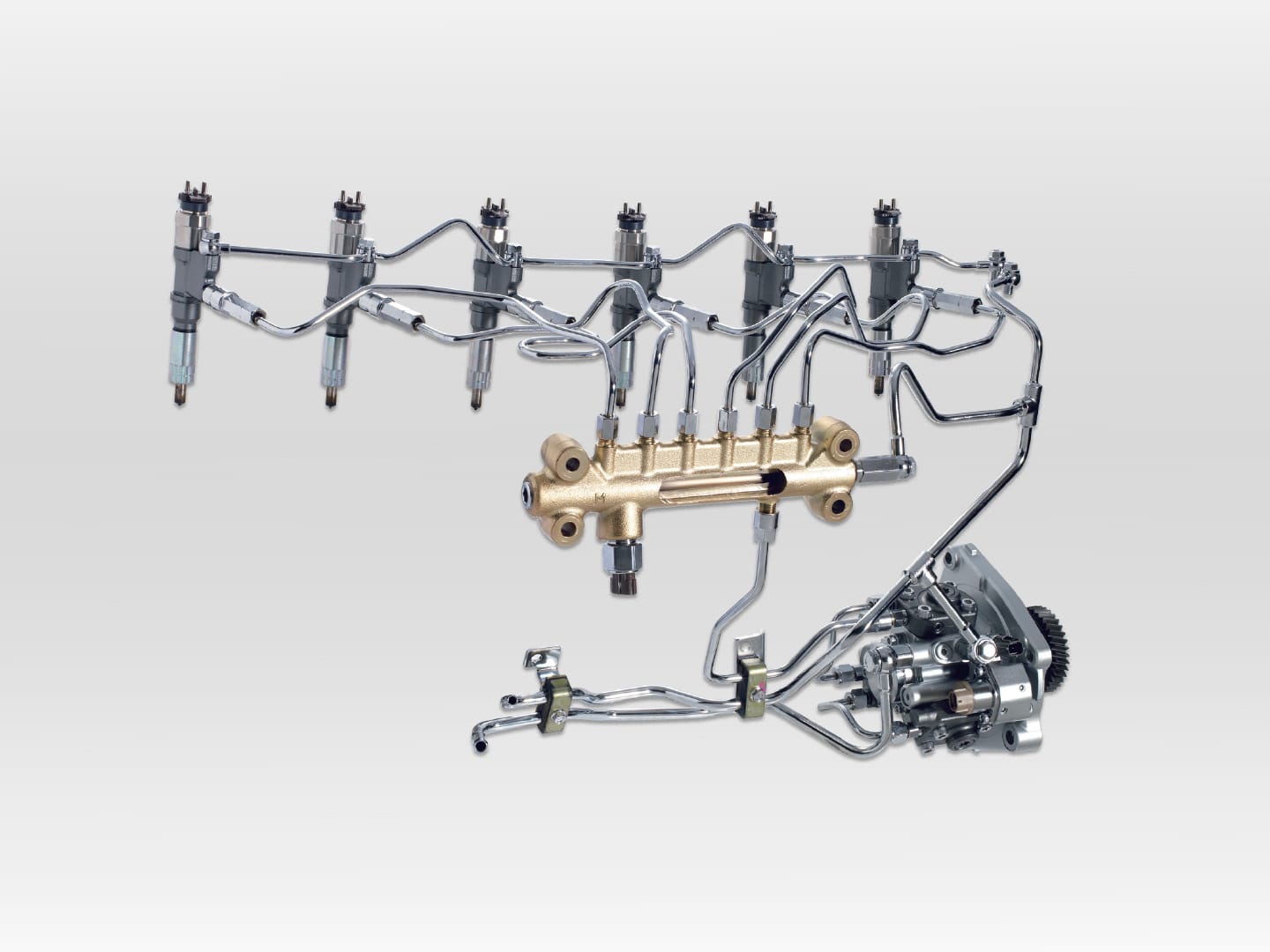

POWERFUL COMMON RAIL ENGINE
![](https://isuzudaklak.com.vn/wp-content/uploads/2024/06/1-1-1-2.jpg)

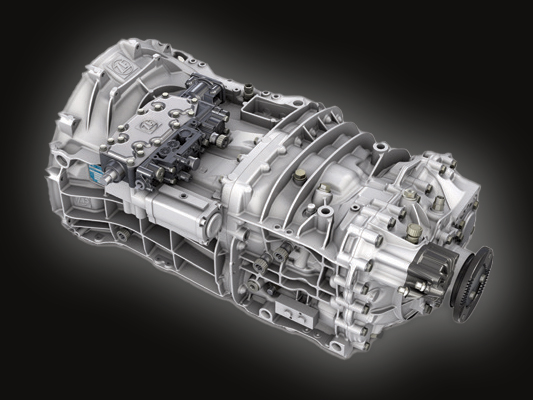

EUROPEAN STANDARD ZF TRANSMISSION
specification
MASS
DIMENSIONS
ENGINE & TRANSMISSION
BASIC SYSTEMS
CONVENIENCE
SAFETY FEATURES
Gross vehicle mass | Kg | 23,830 |
Gross combination mass | Kg | 48,000 |
Kerb mass | Kg | 8,850 |
Max towed weight designed / authorized | Kg | 40,000/38,850 |
No. of seats | 2 | |

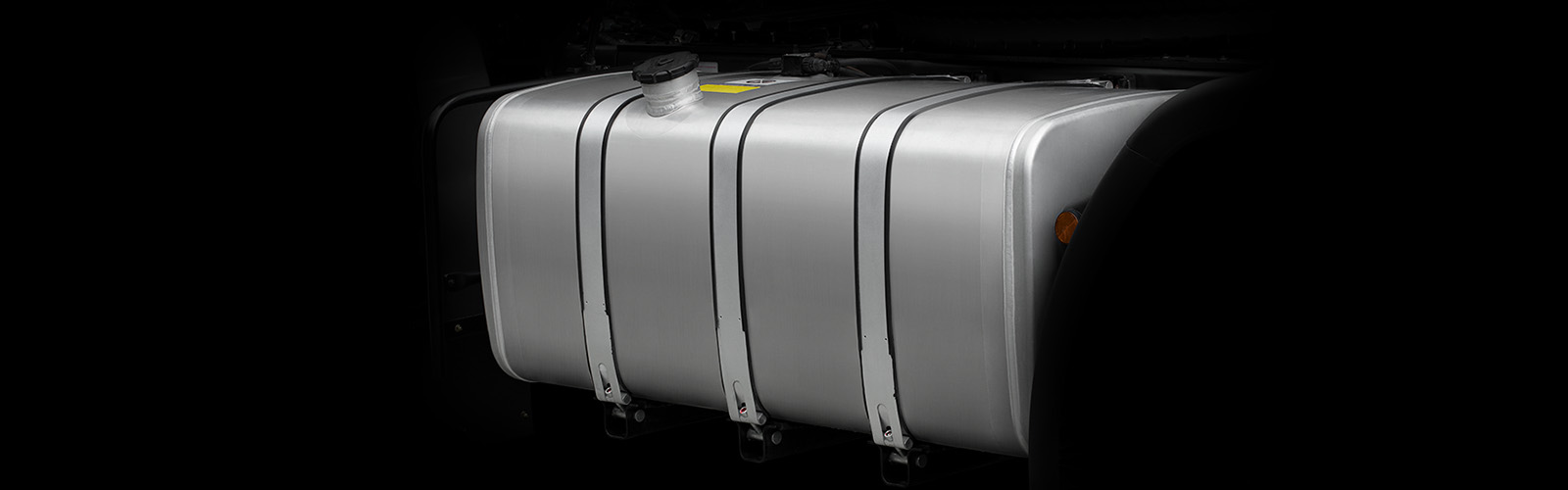

Fuel tank capacity | Litter | 600 |
Ure tank capacity | Litter | 40 |
Overall dimension | mm | 6,895 x 2,500 x 3,970 |
Wheelbase | mm | 3,385 + 1,370 |
Front – rear tread | mm | 2,065 / 1,875 |
Model | 6UZ1-TCG50 | |
Type | 4 stroke, 6 cylinders, in line, turbo charged – intercooler | |
Emission standard | EURO 5 | |
Bore x stroke | mm | 147 x 154 |
Displacement | cc | 9,839 |
Max. Power | PS(kW)/rpm | 380(279)/1,800 |
Max. torque | Nm/rpm | 1,765/1,200~1,500 |
Transmission |
ZF16 (16S2030TO)
16 forwards, 2 reverse
|
|
Final gear ratio | 3.909 | |
Electric axle shift | With | |
Driving system | 6×4 |
Steering system | Recirculating ball with hydraulic assisted |
Suspension system front – rear | Leaf springs, shock absorber |
Brake system front – rear | Full air brake, drum type |
Tire size front – rear | 12R22.5 – 18PR |
Generator | 24V-60A |
Battery | 12V-120Ah x 02 |

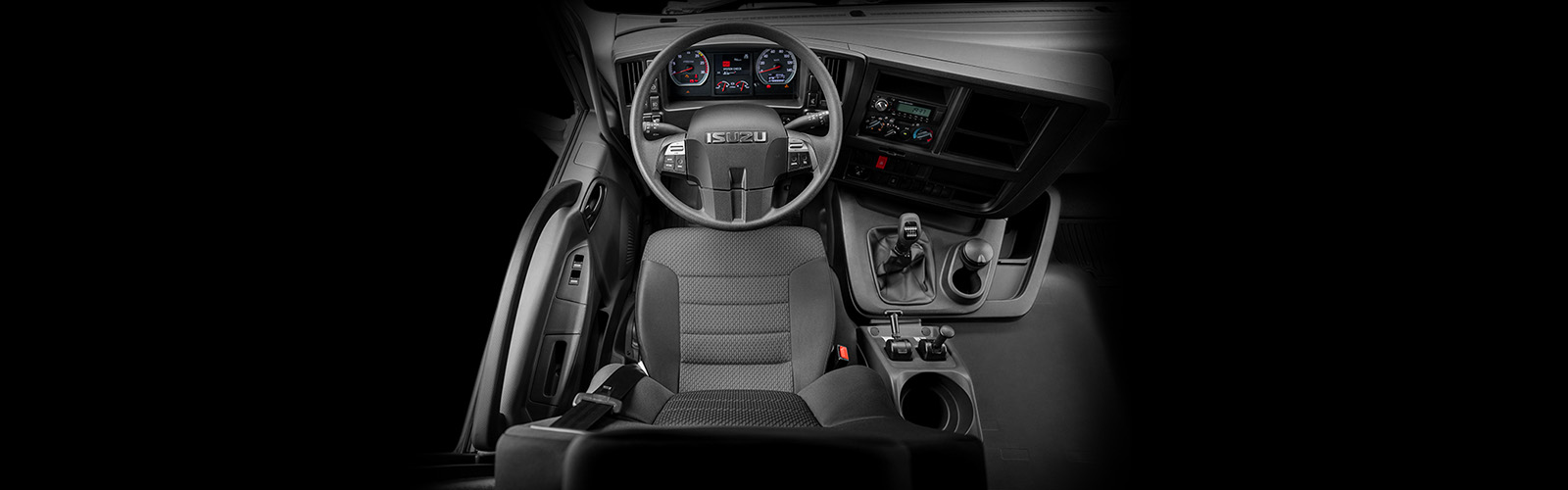

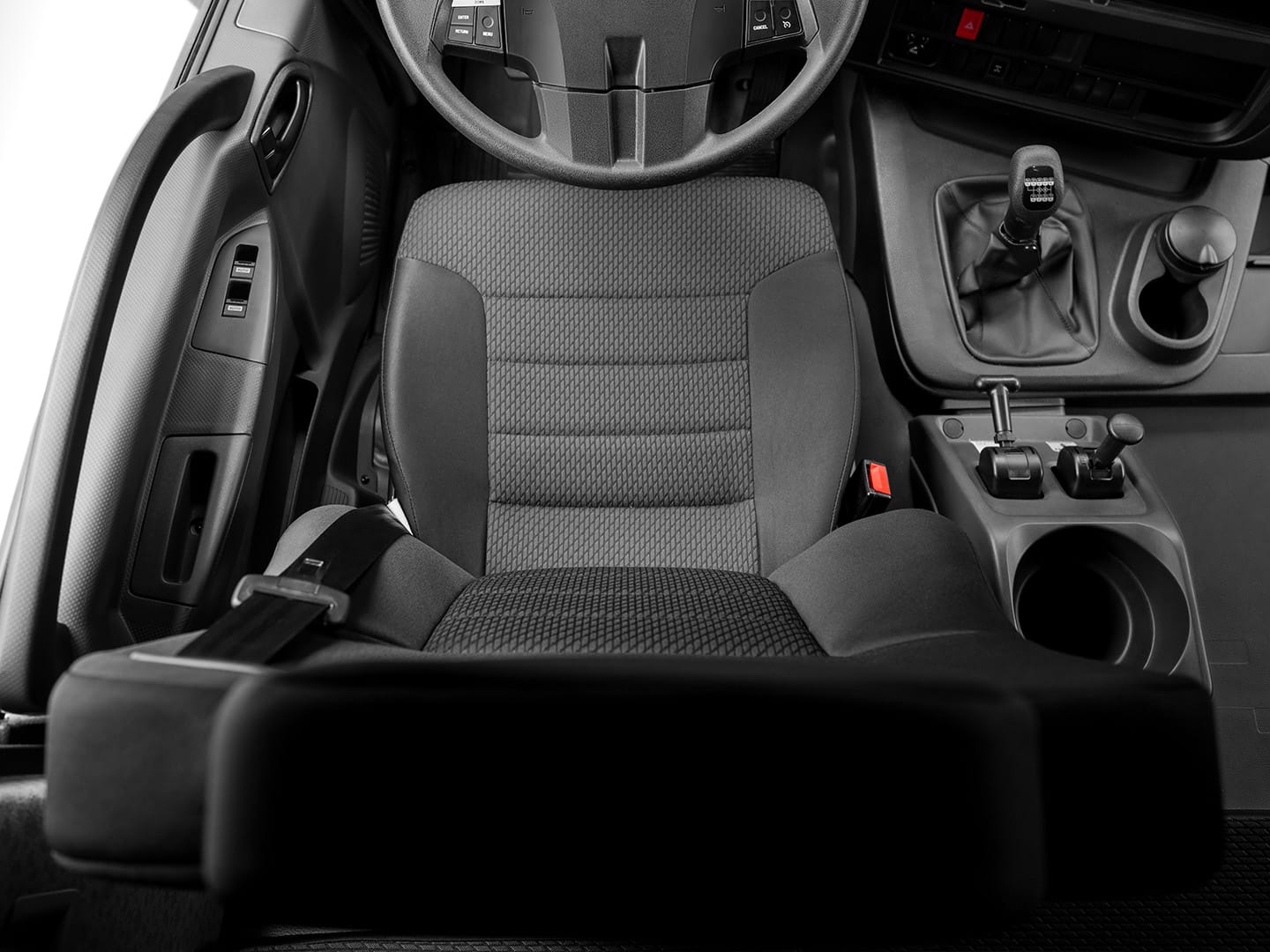

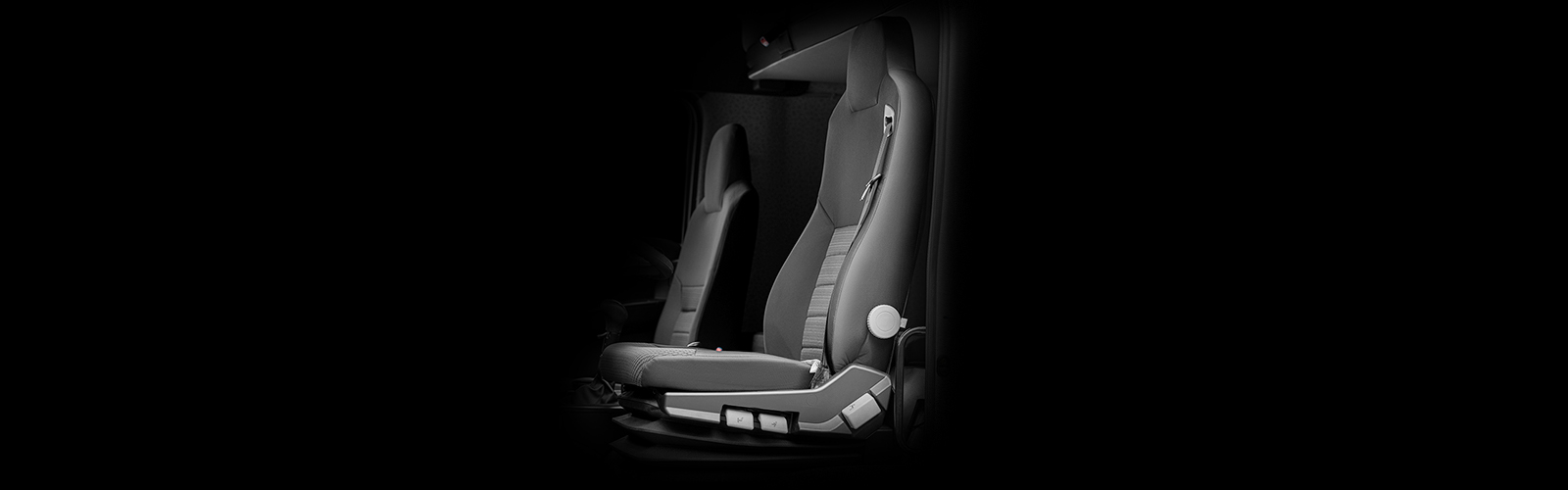

Driver air seat | With |
Center door lock | With |
Power windows | With |

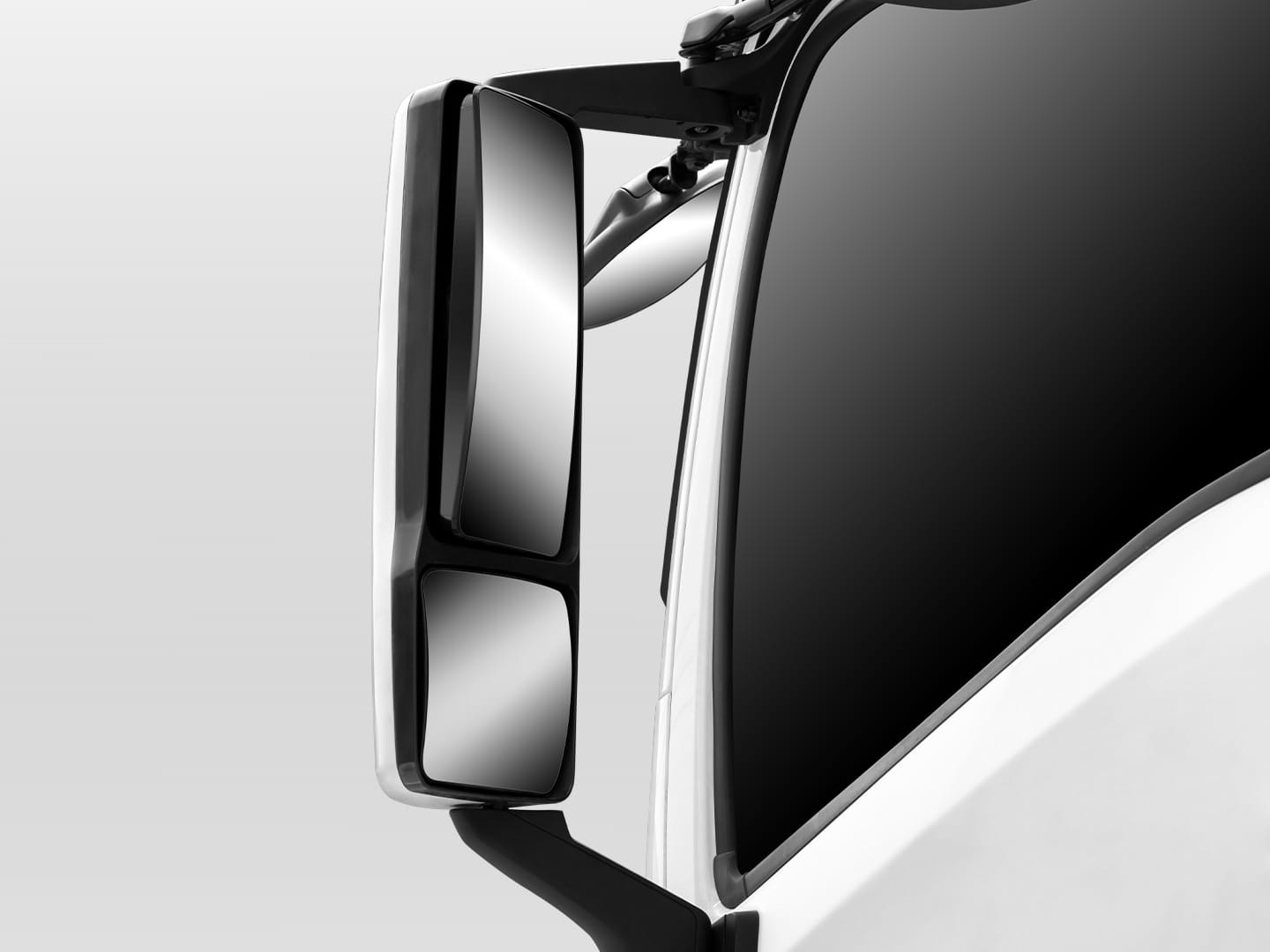

Electric rear mirror with drying function | With |

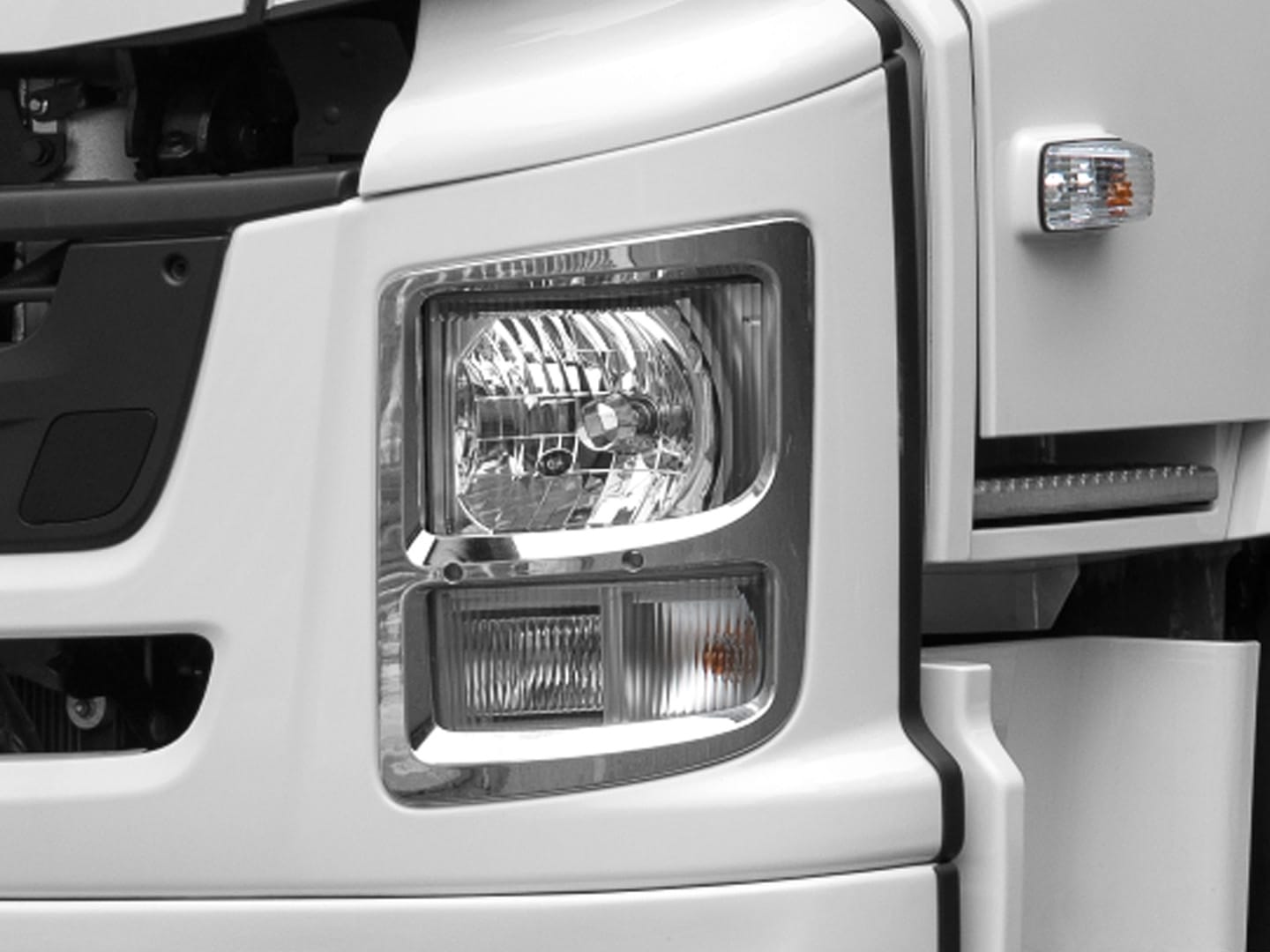

Headlamp leveling | With |
Air conditioner | With |
USB-MP3, AM/FM Radio | With |
USB charger | With |
Double-deck berth | With |

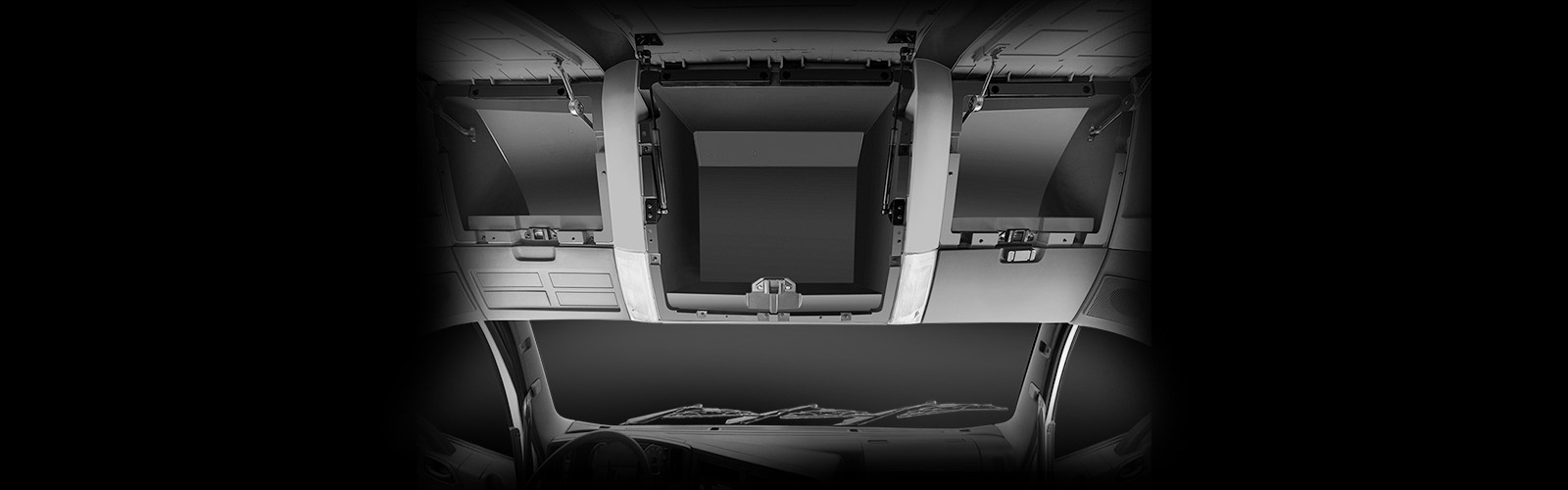

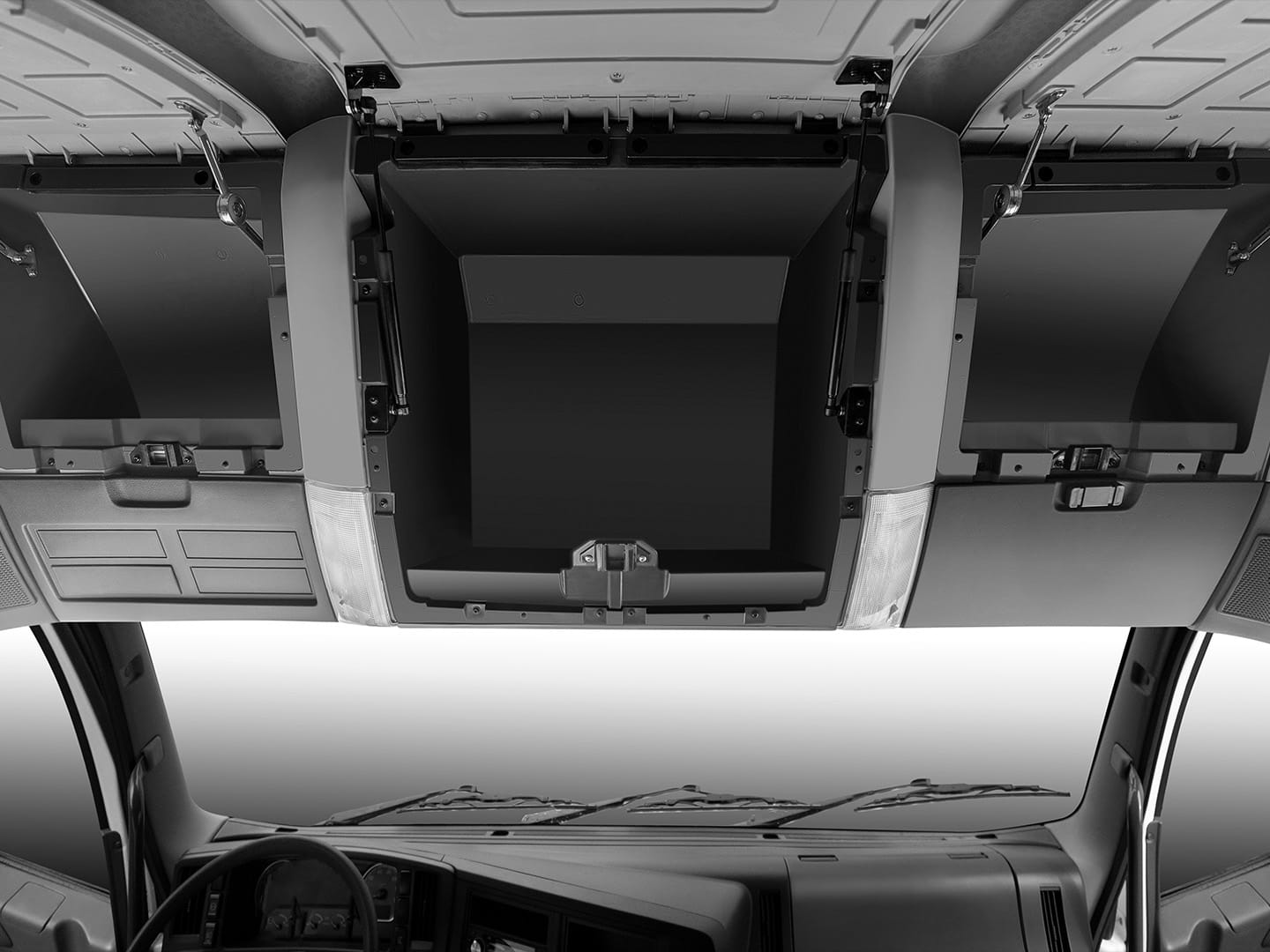

Overhead storage | With |
Bedside table | With |
Cabin room lamp | With |
Reading lamp | With |
ABS | With |
Cruise control | With |
Speed limit | With |
3-points seatbelts | With |
Exhaust brake | With |
Trailer parking brake | With |
