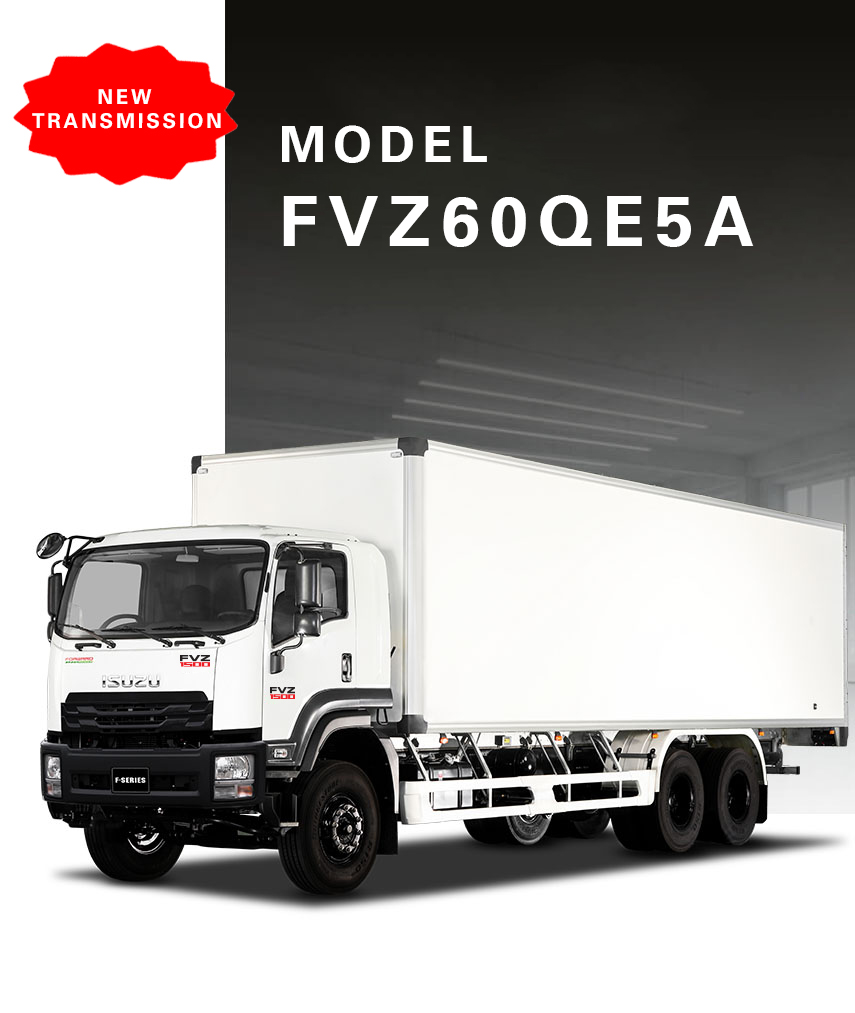

| Gross Vehicle Mass | 25,000(kg) |
|---|---|
| Overall Dimension | 8,460 x 2,485 x 3,010 (mm) |
| Max. Power | 280 (206) / 2,400 (Ps(kW) / rpm) |
| Emission Standard | EURO 5 |
| Manufacturers Name | Isuzu Vietnam Co., Ltd |
| Manufacturers Address | 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City |
| Origin | Vietnam |
| SUGGESTED RETAIL PRICE | 1,985,580,000 VNĐ |
* Applied for cabin chassis. (Price is included VAT)
| Gross Vehicle Mass | Kg | 25,000 |
| Kerb Mass | Kg | 7,485 |

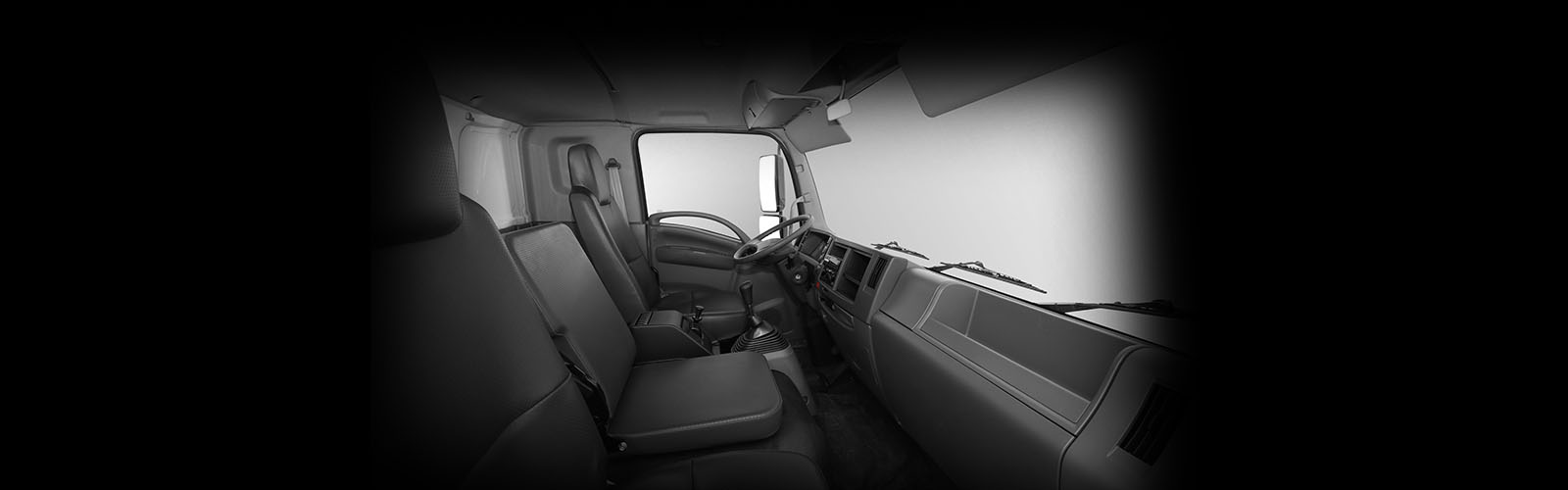

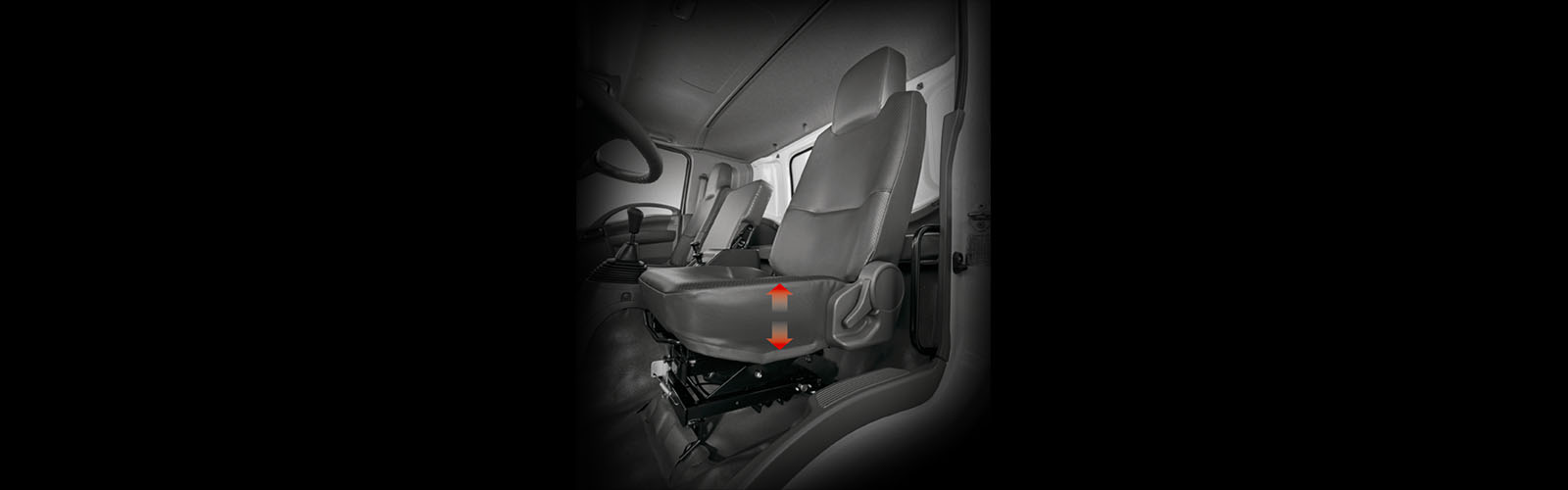

| Number of Seats | Persons | 03 |
| Fuel Tank | Liter | 200 |
| Overall Dimension (OL x OW x OH) | mm | 8,460 x 2,485 x 3,010 |
| Wheelbase (WB) | mm | 4,115 + 1,370 |
| Front – Rear Tread (AW / CW) | mm | 2,065 / 1,850 |
| Ground Clearance (HH) | mm | 280 |
| Front – Rear Overhang (FOH/ROH) | mm | 1,250 / 2,410 |

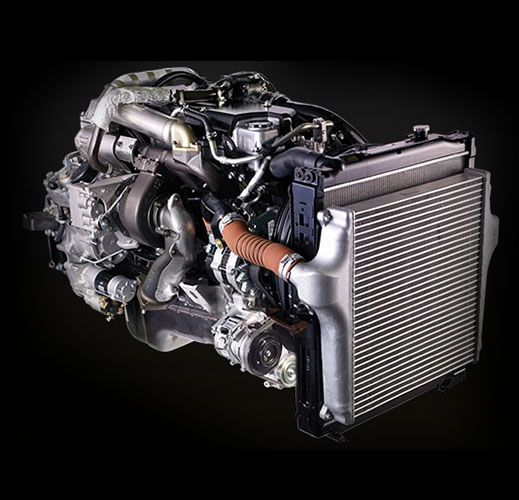

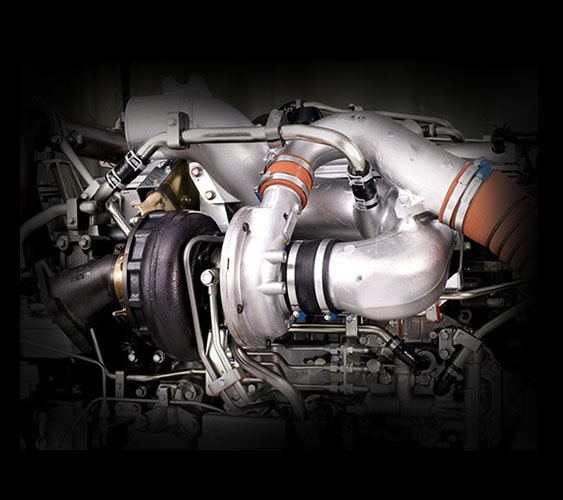

| Model | 6NX1E5RC | |

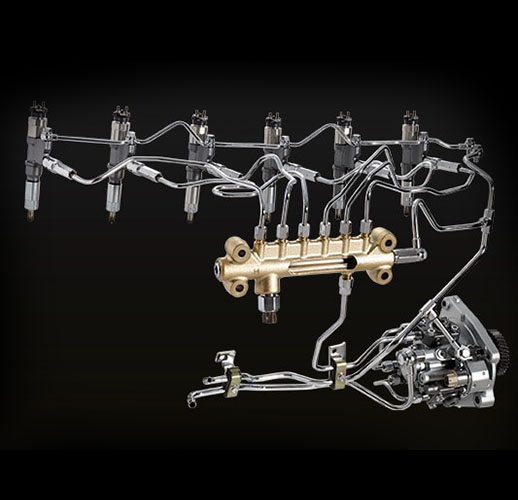

| Type | Common rail, turbo – intercooler | |
| Emission Control | Euro 5 | |
| Displacement | cc | 7,790 |
| Max. Power | Ps(kW) / rpm | 280 (206) /2,400 |
| Max. Torque | N.m(kgf.m) / rpm | 820 (84) / 1,450-2,400 |
| Transmission | 9S1115TD 9 Forward & 1 Reverse |
|
| PTO | Standard |
| Max Speed | Km/h | 76 |
| Gradeability | % | 43 |
| Min Turning Radius | m | 8.2 |
| Steering System | Recirculating ball with hydraulic assisted |
| Suspension System Front – Rear | Dependent, leaf springs, shock absorber |

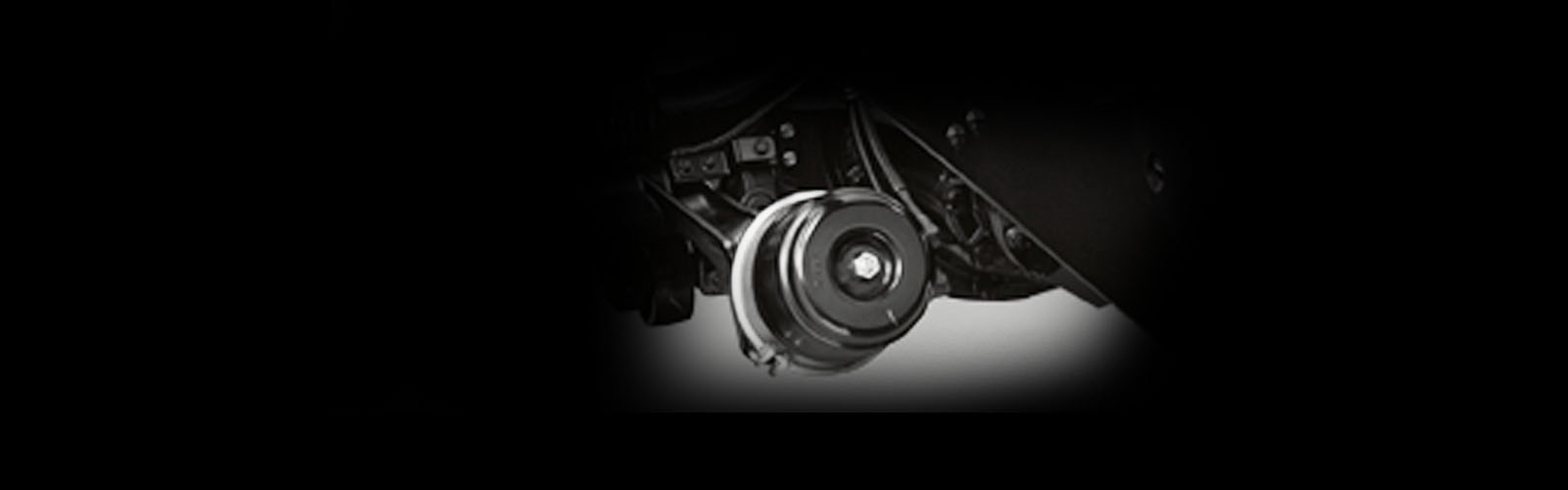

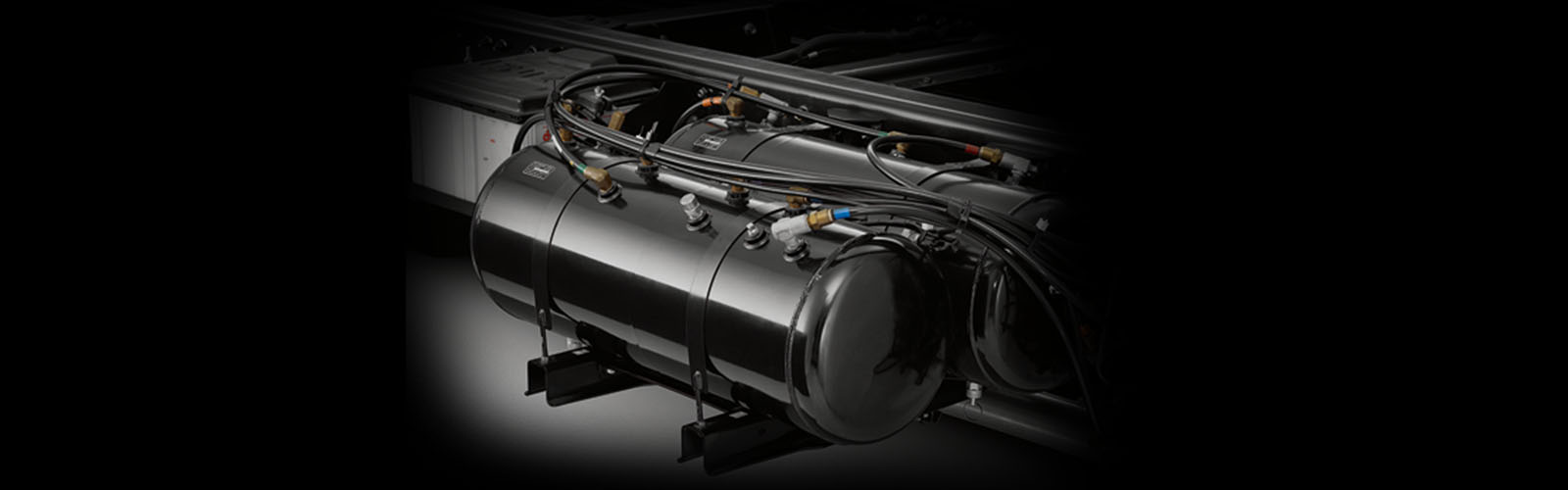

| Brake System Front – Rear | Drum, Full air dual circuit |
| Tire Size Front – Rear | 11.00R20 16PR (Rib – lug) |
| Generator | 24V – 60A |
| Battery | 12V-70(Ah) x2 |
